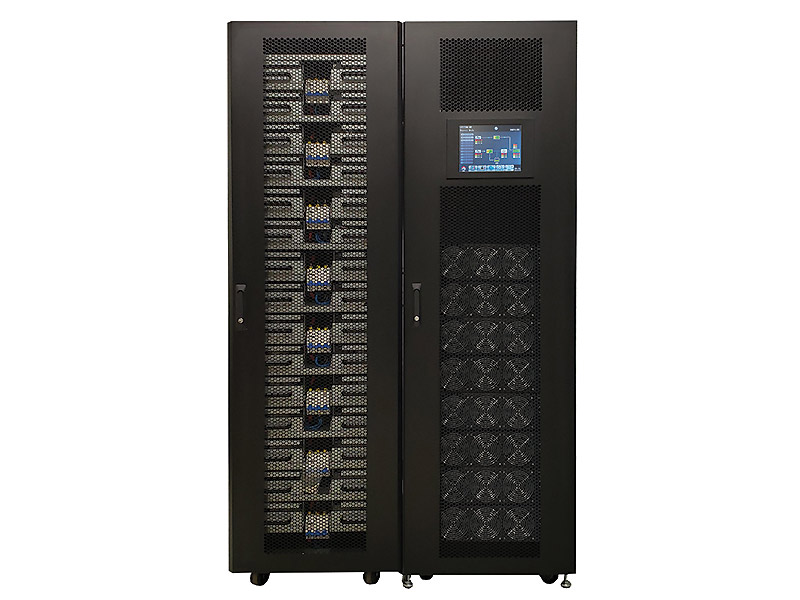

Xtreme Power Conversion M90U140 20 kVA (#9950)

Scalable, Modular UPS for Mission Critical Availability

The M90U-140 is a scalable modular online double conversion UPS that protects critical data and equipment from power problems while supplying clean and reliable network grade power.

M90U-140 can be configured with a fully redundant power module and battery modules. Should one module fail, the remaining modules smoothly take over the load. The power modules are independent and can be hot swapped without risk to the critical load.

Product Snapshot

• Capacities: 15kVA, 20kVA, 30kVA, 40kVA, 45kVA, 60kVA, 75kVA, 80kVA, 90kVA, 100kVA, 105kVA, 120kVA, 140kVA
• Hot swappable power and battery modules
• UL-1778, cUL, FCC A, RoHS, TAA (select models)
• 2 year electronics, 2 year battery warranty (USA and Canada)

Features

• Unity output power factor - M90U-140 systems provide more real capacity for high density loads
• Scalable - when power and runtime requirements change M90U-140 modularity makes it easy to add modules and increase capacity
• Power module ratings - 15kW or 20kW modules available
• Modular static switch - for easier maintenance
• Maintenance bypass - front mounted MBP switch transfers critical loads from UPS power to utility power, enabling maintenance
• Large Touchscreen LCD display - 10” display provides graphic display including status and alarms
• Dual or single utility input - provides maximum installation flexibility
